FARMIKKO TREE SHEARS HAS BEEN MANUFACTURED SINCE 2007
On this page you will find information about the development of Farmikko tree shear models from the beginning to the present day.
- Models from newest to oldest:
- (221TCE, 221TE) and (201TCE, 201TE) models
- production started from 2025 –>
- Updated hydraulics allows faster movements
- Stronger cutting knife frames makes possible to use of different knives and it allows easier cutting
- Double bearings of the blade frames reduces friction and surface pressure, and this increases the service life of bearings
- Limit switch valve ensures a better grapple compression and prevents guillotine knives moving when loading full handfuls
- Hydraulic hoses are simpler and better protected than in the old model
- functions: cutting, delimbing, loading, multi tree handling, wireless electric control for tilt
- replaces the previous 220 and 200 models
- (300TCE) model
- production started from 2023 –>
- first tree shear model in 300-series
- more advanced and professional hydraulics and bearings
- functions: cutting, delimbing, loading, multi tree handling, wireless electric control for tilt
- (220TCE, 220TE, 220TC, 220T) and (200TCE, 200TE, 200TC , 200T) models
- manufactured in 2020-2024
- model names were updated and the Farmikko brand color was changed to: black – red – yellow passivated
- the movement series were implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- functions: cutting, delimbing, loading, multi tree handling, hydraulic tilt
- E-models are equipped with wireless electric control for tilt
- Meanings of T,C,E symbols:
- T = delimbing blades
- C = collector / multi tree handling of trees
- E = wireless electric control of the tilt
- (E220-200-HT2P) and (E200-150-HT) models
- manufactured in 2019-2020
- the first Farmikko models that were equipped with a collector
- the movement series were implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- (220-170-HT2P) model
- manufactured in 2017-2020
- the movement series were implemented with hydraulic valves that mechanically identify the movement position of the cylinders. First model of this kind of control.
- functions: cutting, delimbing, loading, multi tree handling, hydraulic tilt
- (200-125-HT) model
- manufactured in 2015-2020
- the first model in which the movement were implemented with hydraulic valves that hydraulically identify the movement position of the cylinders
- at the time the most advanced tree shear on the market, where the movement control was implemented other than with pressure-controlled sequence valves.
- the movements were much more precisely than with sequence valve control and the usability of the tree shear was significantly improved.
- functions: cutting, delimbing, loading, multi tree handling, hydraulic tilt
- (200-110) model
- manufactured in 2011 – 2017
- the movements were implemented with sequence valves.
- The tilt operated with a mechanical swing
- the first model equipped with a two-knife guillotine cutting
- functions: cutting, delimbing, loading, mechanical tilt
- (2007, 2008, 2009) models
- manufactured in 2007 – 2011
- the movements were implemented with sequence valves.
- The tilt operated with a mechanical swing
- The first ever Farmikko tree shear model, this is where it all started.
- a guillotine cutting unit, which was of a telescopic type in structure
- functions: cutting, delimbing, loading, mechanical tilt
A MORE DETAILED HISTORY OF THE MODELS, STARTING FROM THE LATEST:
221TCE model (in production)
- Manufactured by Farmikko since 2025, still in production today
- Updated hydraulics allows faster movements
- Stronger cutting knife frames makes possible to use of different knives and it allows easier cutting
- Double bearings of the blade frames reduces friction and surface pressure, and this increases the service life of bearings
- Limit switch valve ensures a better grapple compression and prevents guillotine knives moving when loading full handfuls
- Hydraulic hoses are simpler and better protected than in the old model
- The model is equipped with wireless electric tilt control
- Tree shear with collector
- Weight 205 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forestry machine cranes with a reach of over 6.5 meters
- Color: black – red – yellow passivated
- Replaces the previous 220TCE model
221TE model (in production)
- Manufactured by Farmikko since 2025, still in production today
- Updated hydraulics allows faster movements
- Stronger cutting knife frames makes possible to use of different knives and it allows easier cutting
- Double bearings of the blade frames reduces friction and surface pressure, and this increases the service life of bearings
- Limit switch valve ensures a better grapple compression and prevents guillotine knives moving when loading full handfuls
- Hydraulic hoses are simpler and better protected than in the old model
- The model is equipped with wireless electric tilt control
- Tree shear with delimber
- Weight 175 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forestry machine cranes with a reach of over 6.5 meters
- Color: black – red – yellow passivated
- Replaces the previous 220TE model
201TCE model (in production)
- Manufactured by Farmikko since 2025, still in production today
- Updated hydraulics allows faster movements
- Stronger cutting knife frames makes possible to use of different knives and it allows easier cutting
- Limit switch valve ensures a better grapple compression and prevents guillotine knives moving when loading full handfuls
- Hydraulic hoses are simpler and better protected than in the old model
- The model is equipped with wireless electric tilt control
- Tree shear with collector
- Weight 155 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: black – red – yellow passivated
- Replaces the previous 200TCE model
201TE model (in production)
- Manufactured by Farmikko since 2025, still in production today
- Updated hydraulics allows faster movements
- Stronger cutting knife frames makes possible to use of different knives and it allows easier cutting
- Limit switch valve ensures a better grapple compression and prevents guillotine knives moving when loading full handfuls
- Hydraulic hoses are simpler and better protected than in the old model
- The model is equipped with wireless electric tilt control
- Tree shear with delimber
- Weight 130 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: black – red – yellow passivated
- Replaces the previous 200TE model
300TCE model (in production)
- Manufactured by Farmikko since 2023, still in production today
- First tree shear model in 300-series
- More advanced hydraulic control
- The model is equipped with wireless electric tilt control
- Tree shear with collector
- Weight 395 kg
- Cutting diameter 300mm
- For forest machines and bigger tractor cranes and truck cranes
- Color: black – red – yellow passivated
220TCE model (not in production)
- Manufactured by Farmikko in 2022-2024
- The first grapple model that were equipped with wireless electric tilt control
- Tree shear with collector
- Weight 205 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forest machine cranes with a reach of over 6.5 meters
- Color: black – red – yellow passivated
220TE model (not in production)
- Manufactured by Farmikko in 2022-2024
- The first grapple model that were equipped with wireless electric tilt control
- Tree shear with delimber
- Weight 175 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forest machine cranes with a reach of over 6.5 meters
- Color: black – red – yellow passivated
200TCE model (not in production)
- Manufactured by Farmikko in 2022-2024
- The first grapple model that were equipped with wireless electric tilt control
- Tree shear with collector
- Weight 155 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: black – red – yellow passivated
200TE model (not in production)
- Manufactured by Farmikko in 2022-2024
- The first grapple model that were equipped with wireless electric tilt control
- Tree shear with delimber
- Weight 130 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: black – red – yellow passivated

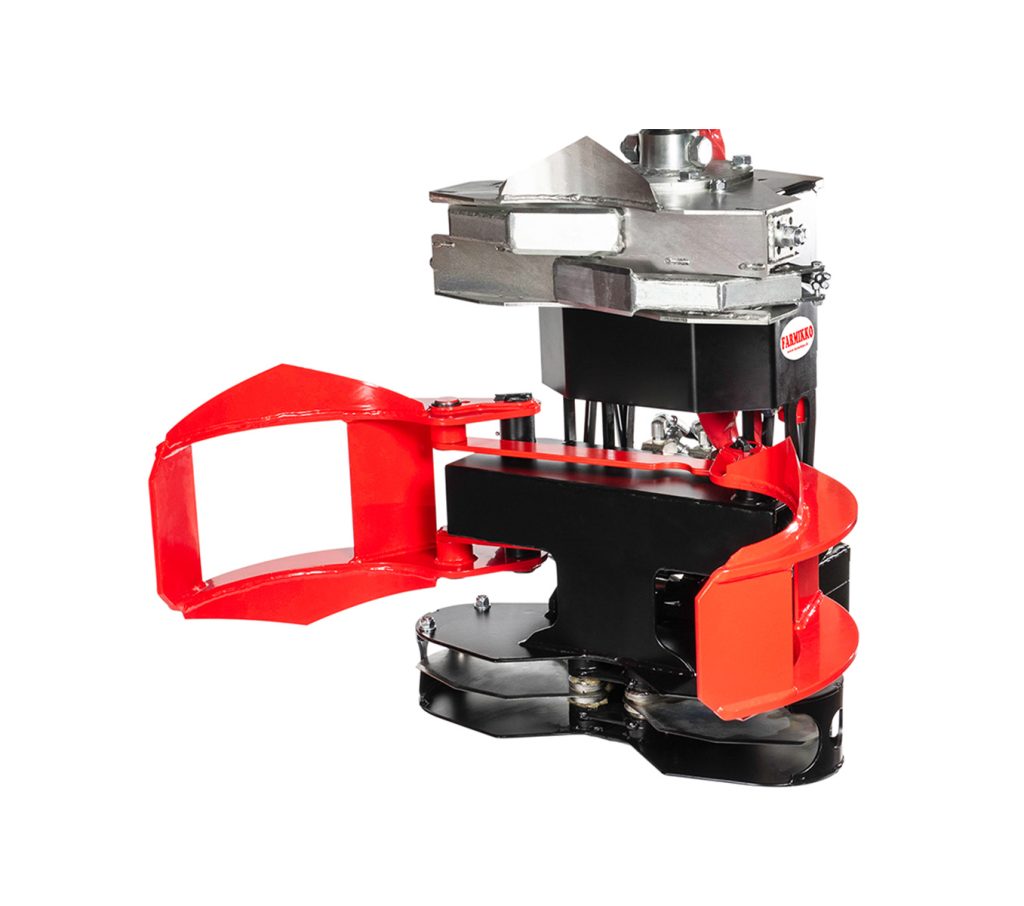

220TC model (not in production)
- Manufactured by Farmikko in 2022-2024
- Manufactured in cooperation with JAK-Metall in 2020-2022, when the tree shear was sold under the product name JAK220TC
- The movement sequences are implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- Tree shear with collector
- Weight 200 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forest machine cranes with a reach of over 6.5 meters
- Color: black – red – yellow passivated
220T model (not in production)
- Manufactured by Farmikko in 2022-2024
- Manufactured in cooperation with JAK-Metall in 2020-2022, when the tree shear was sold under the product name JAK220T
- The movement sequences are implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- Tree shear with delimber
- Weight 170 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forest machine cranes with a reach of over 6.5 meters
- Color: black – red – yellow passivated

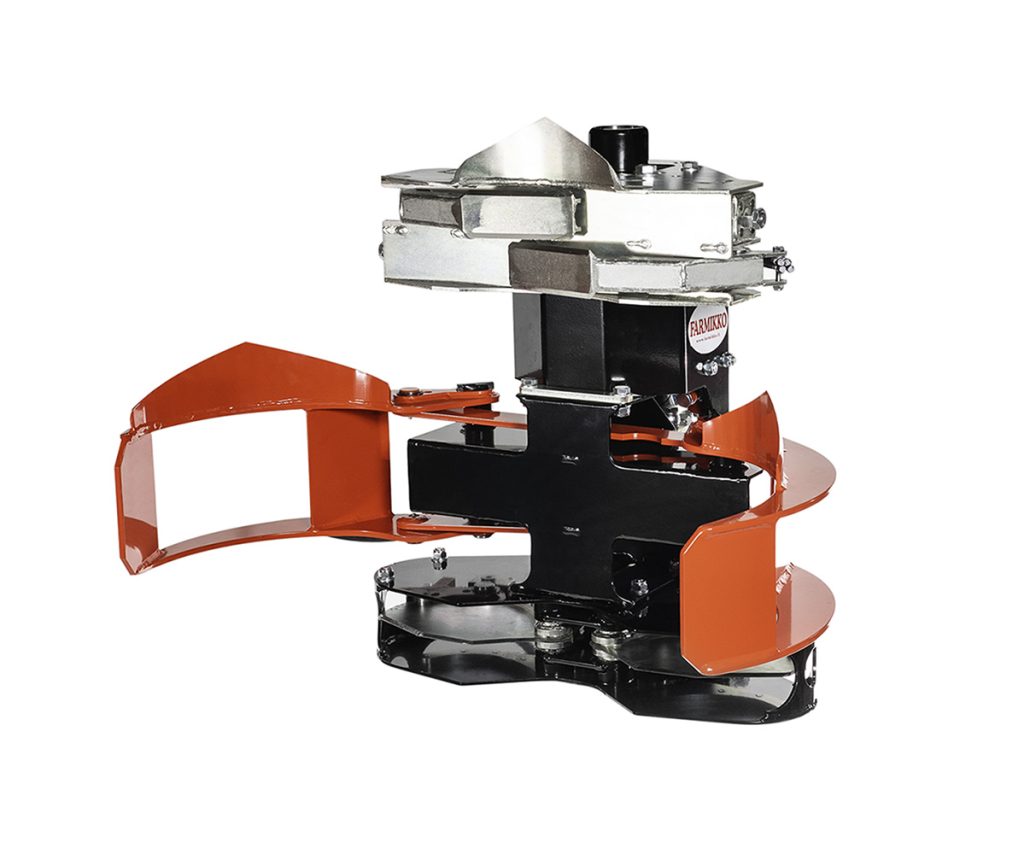

200TC model (not in production)
- Manufactured by Farmikko in 2022-2024
- Manufactured in cooperation with JAK-Metall in 2020-2022, when the tree shear was sold under the product name JAK200TC
- The movement sequences are implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- Tree shear with collector
- Weight 150 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: black – red – yellow passivated

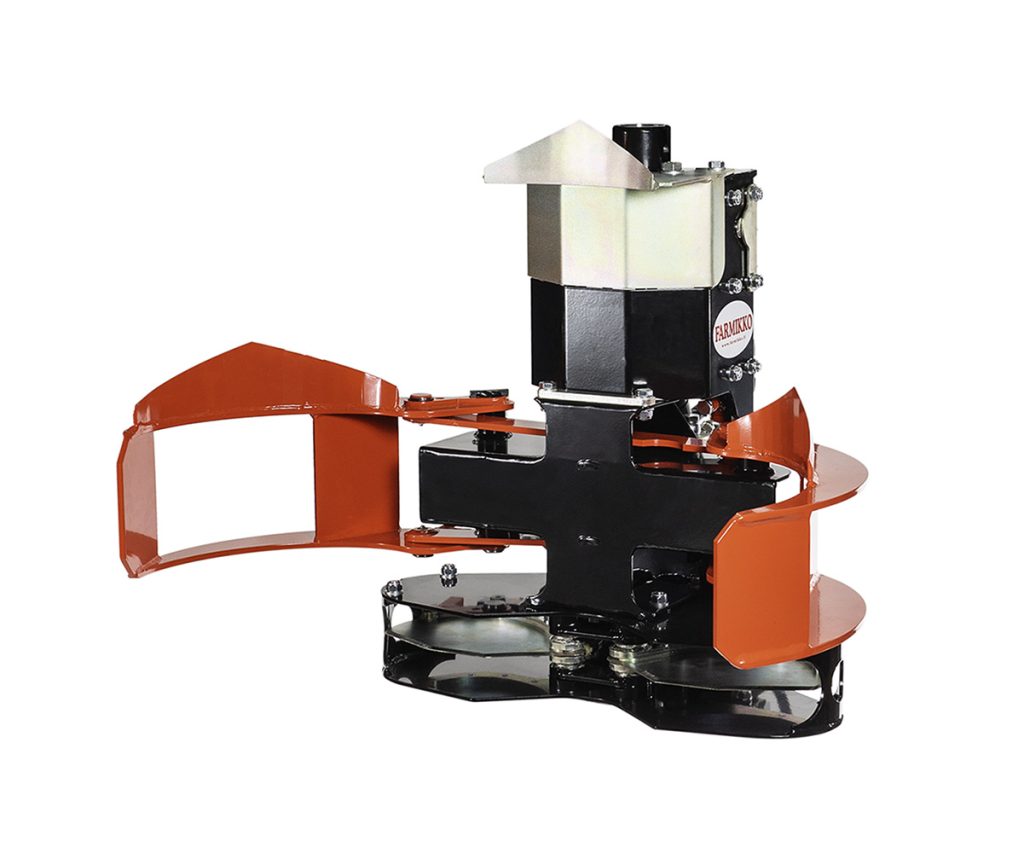

200T model (not in production)
- Manufactured by Farmikko in 2022-2024
- Manufactured in cooperation with JAK-Metall in 2020-2022, when the tree shear was sold under the product name JAK200T
- The movement sequences are implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- Tree shear with delimber
- Weight 125 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: black – red – yellow passivated

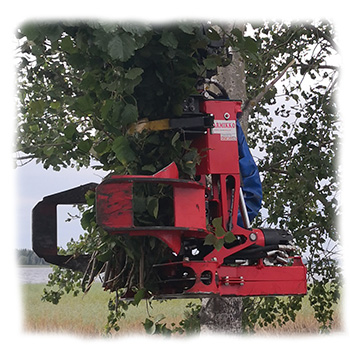

E220-200-HT2P model (not in production)
- Manufactured by Farmikko in 2019-2020
- The movement series are implemented with hydraulic valves that mechanically identify the movement position of the cylinders
- Tree shear with collector
- The first Farmikko tree shear model for the 220 series, which is equipped with a collector
- Weight 200 kg
- Cutting diameter 220mm
- Equipped with a pressure booster that increases the cutting force
- For tractor and forest machine cranes with a reach of over 6.5 meters
- Color: red – yellow passivated

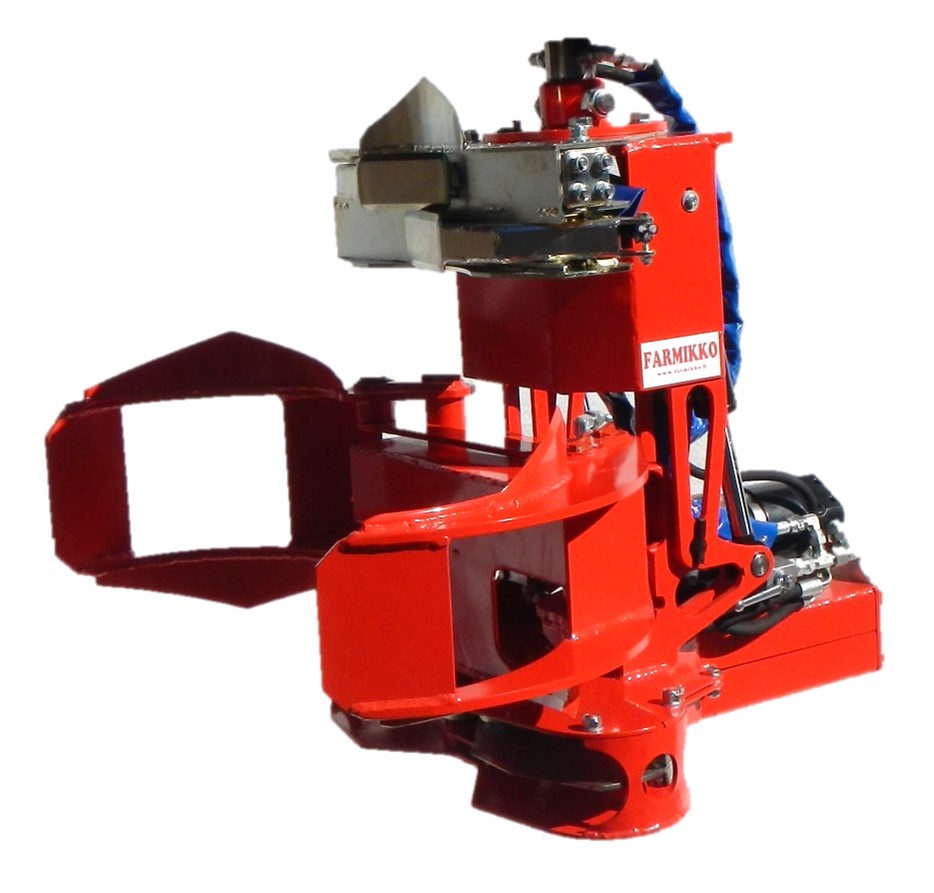

E200-150-HT model (not in production)
- Manufactured by Farmikko in 2019-2020
- The movement series are implemented with hydraulic valves that mechanically identify the movement position of the cylinders (the first 200 series tree shear to be implemented with such control)
- Tree shear with collector
- The first Farmikko tree shear model for the 200 series, which is equipped with a collector
- Weight 150 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: red – yellow passivated

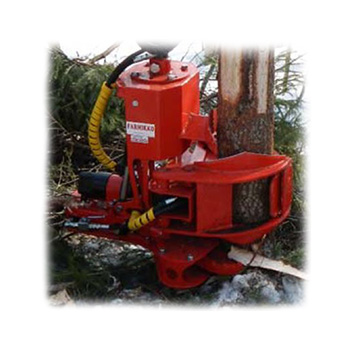

220-170-HT2P model (not in production)
- Manufactured by Farmikko in 2017-2020
- The movement series are implemented with hydraulic valves that mechanically identify the movement position of the cylinders (the first 220 series tree shear to be implemented with such control)
- Tree shear with delimber
- Weight 170 kg
- Cutting diameter 220mm
- For tractor and forest machine cranes with a reach of over 6.5 meters
- Color: red

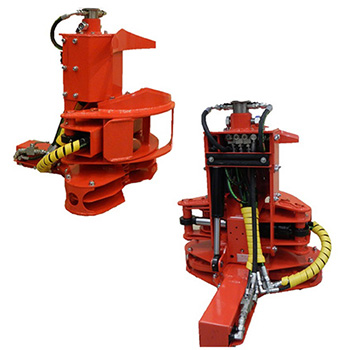

200-125-HT model (not in production)
- Manufactured by Farmikko in 2015-2020
- The movement series are implemented with hydraulic valves that hydraulically identify the movement position of the cylinders (the first 200 series tree shear to be implemented with such control)
- Tree shear with delimber
- Weight 125 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: red

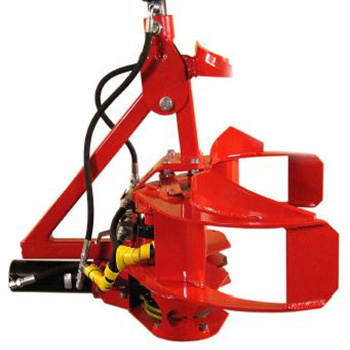

200-110 and 200-130 model (not in production)
- Manufactured by Farmikko in 2011-2017
- The movement sequences are implemented with sequence valves that operate with hydraulic pressure limits
- Tilt with mechanical swing construction. 2 different tilt frame models were manufactured -> low and high
- Tree shear with delimber
- Weight 110-130 kg
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: red

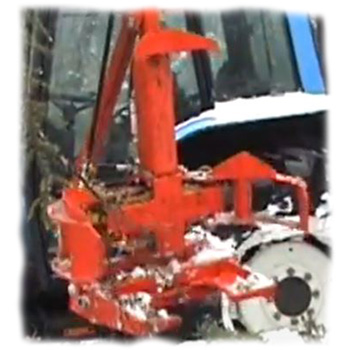

2007, 2008, 2009 models (not in production)
- Manufactured by Farmikko in 2007-2011
- The movement sequences are implemented with sequence valves that operate with hydraulic pressure limits
- Tilt with mechanical swing construction.
- The first Farmikko tree shear model, this is where it all started
- Guillotine cutting unit, which was of telescopic type in structure
- Tree shear with delimber
- Cutting diameter 200mm
- For tractor and small forest machine cranes with a reach of under 6.5 meters
- Color: red
